Series:ACS800
Type:01=Wall-Mounted U1=Wall-Mounted (US)
Protection Rating:IP 21 / UL Type 1
Control Panel:CDP312R
Application Software:Standard Application
Power Range:0.55 to 200 kW (0.75 to 250 HP)
Voltage Range:208/220/230/240 VAC 380/400/415 VAC 380/400/415/440/460/480/500 VAC 525/575/600/690 VAC
Mechanical Design:Includes brake chopper within R2, R3, and 690V R4 enclosure
Coating:Coated circuit board (Standard) / Uncoated circuit board (US version)

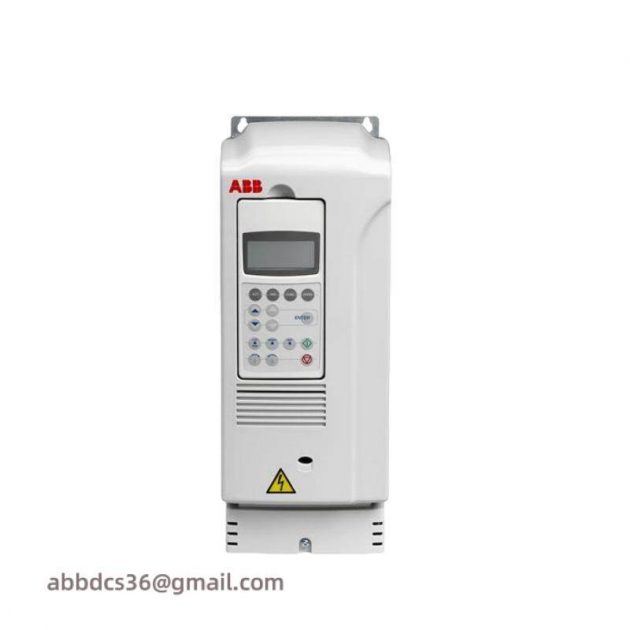

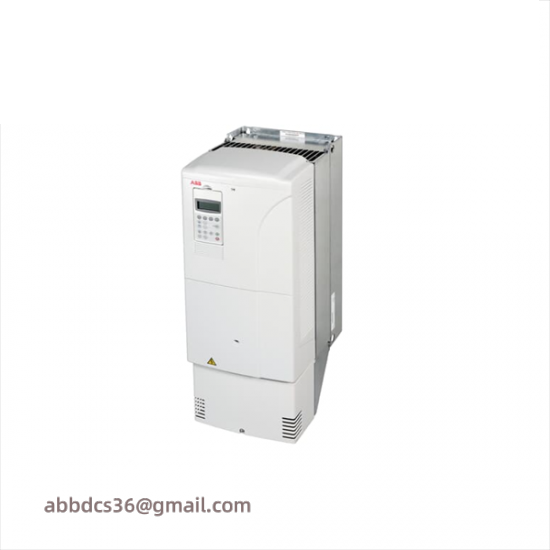

The ABB ACS800 single drive unit, tailored for industrial applications, offers unparalleled performance and reliability. Engineered with a wall-mounted design for space-saving installations, it supports a wide voltage range from 208V to 690V AC, ensuring adaptability across different electrical environments. Its integrated brake chopper enhances efficiency and safety by managing excess energy during braking phases. With a protection rating of IP21 / UL Type 1, it is protected against dust and water splashes, making it suitable for diverse industrial settings. The ACS800 comes standard with a coated circuit board for enhanced durability against environmental factors. Additionally, it includes a user-friendly controller panel (CDP312R), enabling operators to easily manage the system’s functions. For customization, additional options are available, such as higher protection ratings and different control boards, catering to specific project needs.
