Memory Capacity:384 KB
Expansion Capability:Up to 6 Modules
Input Channels:16 DI (sink)
Output Channels:16 DO (source)
Network Communications:Supports Class 1, 3 Networks
TCP Connections:4 Connections
Ethernet Ports:2 (DLR)
Backplane Type:POINT Bus
Storage:1 GB
Communication Support:Class 1, 3 Network Communications

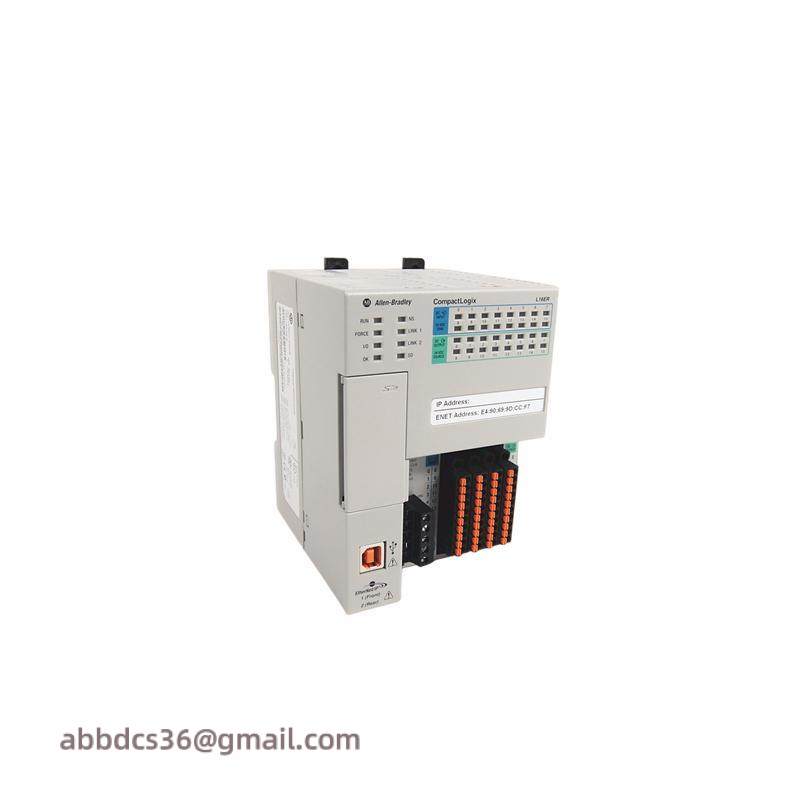

Engineered with a compact design and featuring a 384 KB memory capacity, the Allen-Bradley AB 1769-L16ER-BB1B CompactLogix controller is optimized for seamless integration into existing industrial automation systems.
This controller supports up to six expansion modules, enhancing its versatility for various application requirements. It provides 16 digital input (sink) channels for precise signal processing and 16 digital output (source) channels for efficient actuator control.
Equipped with dual Ethernet ports (Direct Link Routing, DLR), it ensures reliable communication over networks, supporting Class 1, 3 network protocols for robust data exchange. With support for four TCP connections, it facilitates smooth connectivity to diverse devices.
The controller’s POINT bus backplane design ensures high-speed data transfer between components, while its onboard 1 GB storage allows for extensive data management. It supports 2 GB SD card expansion for additional storage capacity.
The Allen-Bradley AB 1769-L16ER-BB1B is a versatile solution for a wide range of industrial control applications, from simple process control to complex system integration. Its modular design, combined with advanced communication capabilities, makes it an ideal choice for enhancing productivity and efficiency in manufacturing environments.
