Current (AC):18 Amps Root Means Square
Input Frequency (AC):47-63 Hz
Input Voltage (AC):120 – 240 Voltage rms, 1-Phase
Bus Overvoltage:400 Volts dc
Dimensions:7.8 x 5.68 x 3.89 in (198.12 x 144.27 x 98.1 mm)
Output Voltage:100-240VAC
Frequency Range:0-400 Hz
Continuous Output Power:1kW
Continuous Output Current:1A
Intermittent Output Current:30A
Output Current (0-peak) (Continuous):2.5 Amps (0-peak)

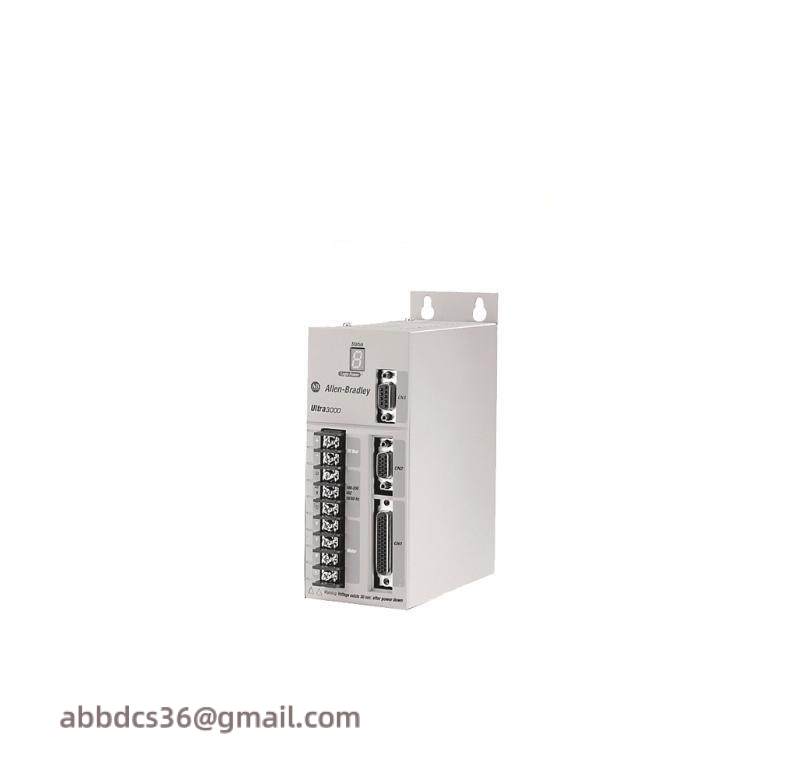

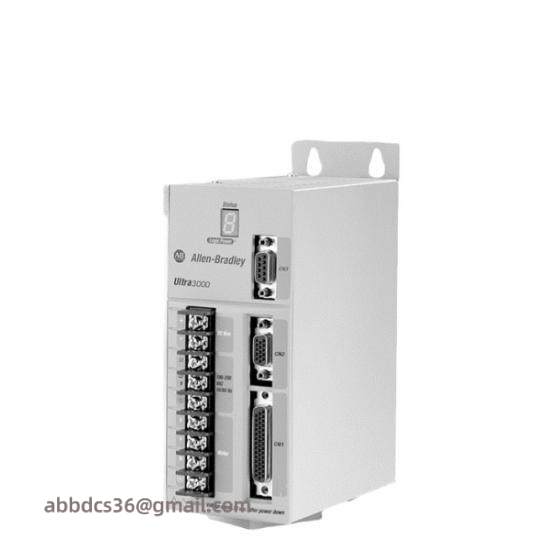

The Allen-Bradley 2098-DSD-020X is a standard digital servo drive from the Ultra 3000 product family. Designed for precise motion and positioning control, this drive seamlessly interfaces with servo motors like Allen-Bradley’s Kinetix Servo Motor series. Its robust construction and advanced technology ensure reliable performance in demanding industrial environments. Key features include a wide input voltage range of 120 – 240VAC, making it adaptable to various power sources. With a compact size of 7.8 x 5.68 x 3.89 in, this drive occupies minimal space, ideal for installations where space is limited. The drive is engineered to handle continuous output power of up to 1kW, providing ample power for a wide range of applications. The drive also supports simple indexing or preconfigured drive motions, enhancing operational flexibility. Additionally, the 2098-DSD-020X offers a continuous output current of 1A and intermittent output current of 30A, ensuring consistent and reliable performance under varying loads.
