Manufacturer:Invensys Triconex
Model:3700A
Module Type:Analog Input
Input Voltage Range:0-5V, + 6%
Type:TMR
Number of Input Points:32, differential, DC coupled
Isolated Points:No
Input Update Rate:55 ms
Resolution:12 bits
Accuracy:<.15% of FSR, from 0° to 60°C
Input Resistance (Load):30 MΩ (DC), minimum
Power-Off Resistance:30 KΩ (DC), typical
Common Mode Rejection:-80 dB (DC-100Hz), typical
Common Mode Range:-12V to +12V peak
Leg-to-Leg Isolation:200 KΩ, typical
Normal Mode Rejection @ 8Hz:-3 dB
Normal Mode Rejection @ 60Hz:-17 dB
Normal Mode Rejection @ 120Hz:-23 dB

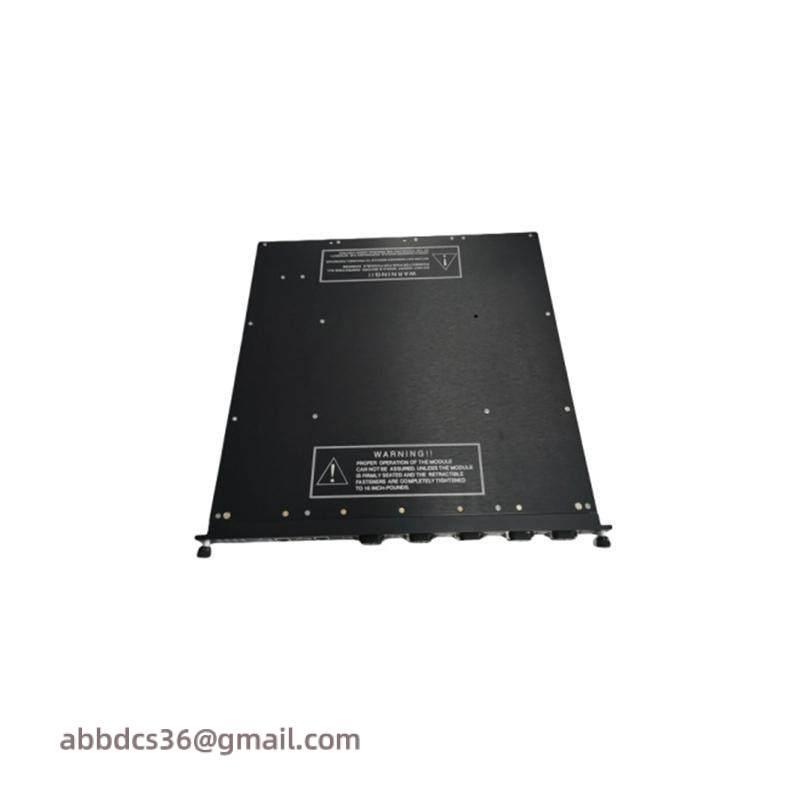

The Invensys Triconex 3700A Analog Input Module is engineered for industries requiring stringent control standards, offering unparalleled accuracy and reliability in data acquisition.
Featuring 32 differential input points, this module is designed for seamless integration into complex control systems, ensuring real-time monitoring and control across various operational conditions.
With an exceptional input update rate of 55 milliseconds, the module ensures quick response times, crucial for maintaining system efficiency and performance.
The 12-bit resolution delivers high precision measurements, enabling accurate data interpretation essential for decision-making processes in industrial operations.
Robust isolation and high common mode rejection capabilities protect against electrical disturbances, ensuring stable operation even in challenging environments.
Easy to integrate and maintain, this module is complemented by comprehensive documentation and support services, ensuring a smooth setup and ongoing support for our customers.
